Pickle Zone Springvale Indoor Pickleball Court Fencing
Hyline supplied and installed 61m of black chain mesh fencing for Pickle Zone’s indoor pickleball courts in Springvale in August 2026. The 1200mm high bolt-down system creates court separation with a consistent black finish across the venue.
The fencing uses 50 × 3.15mm black PVC-coated chain mesh, black powder-coated base-plated posts, top rail and two 4mm black PVC-coated helicoil cables.

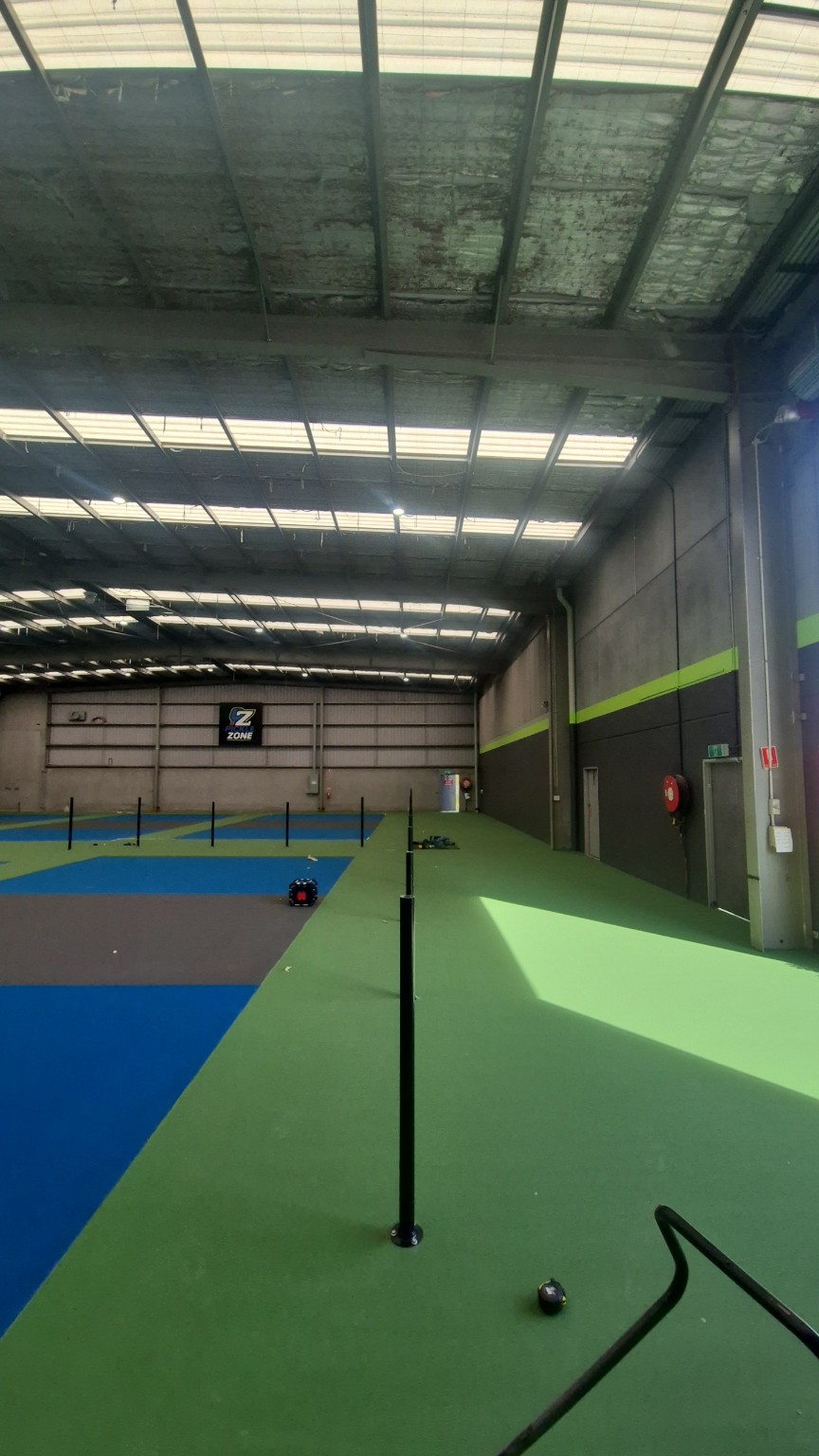

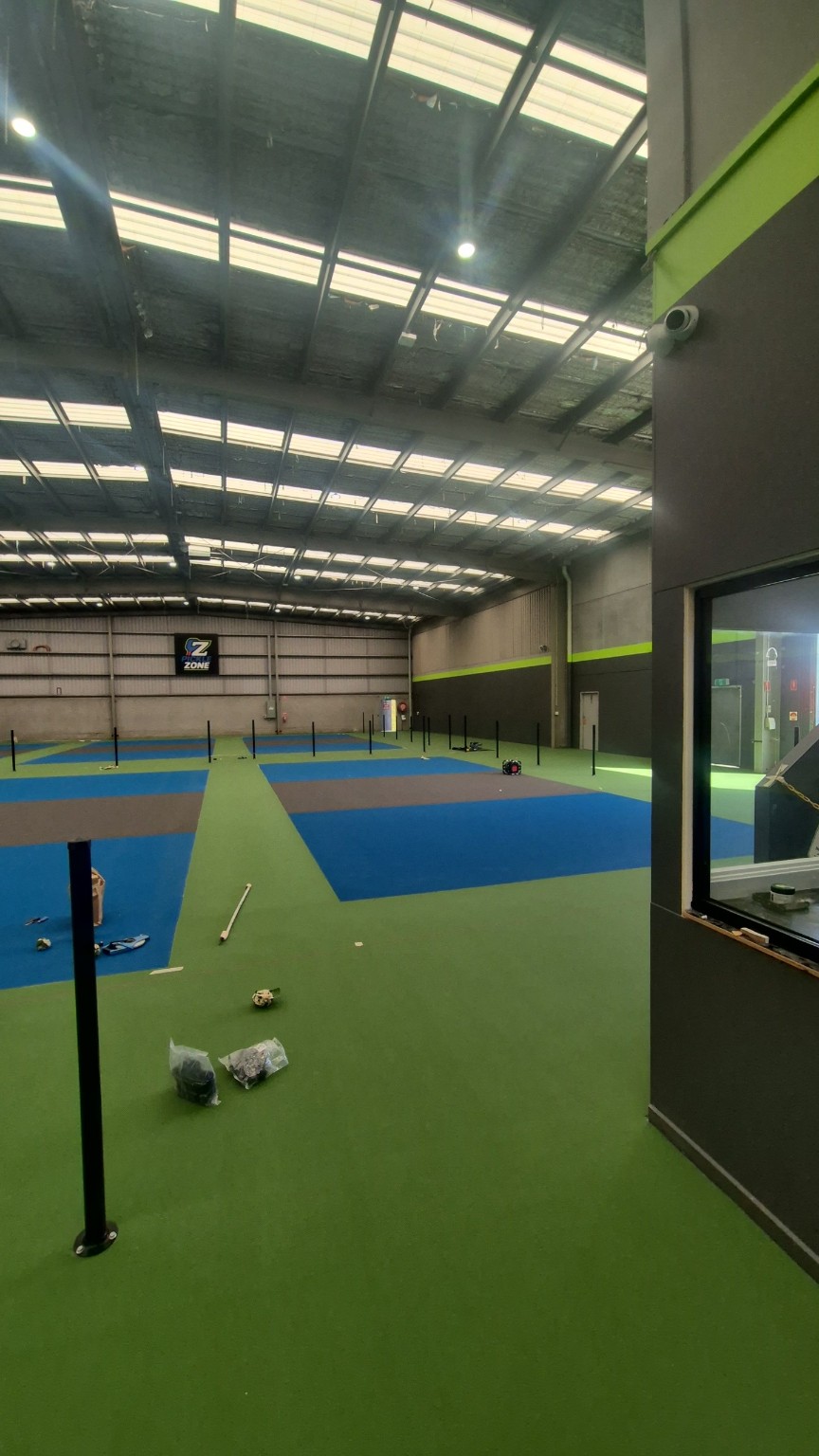

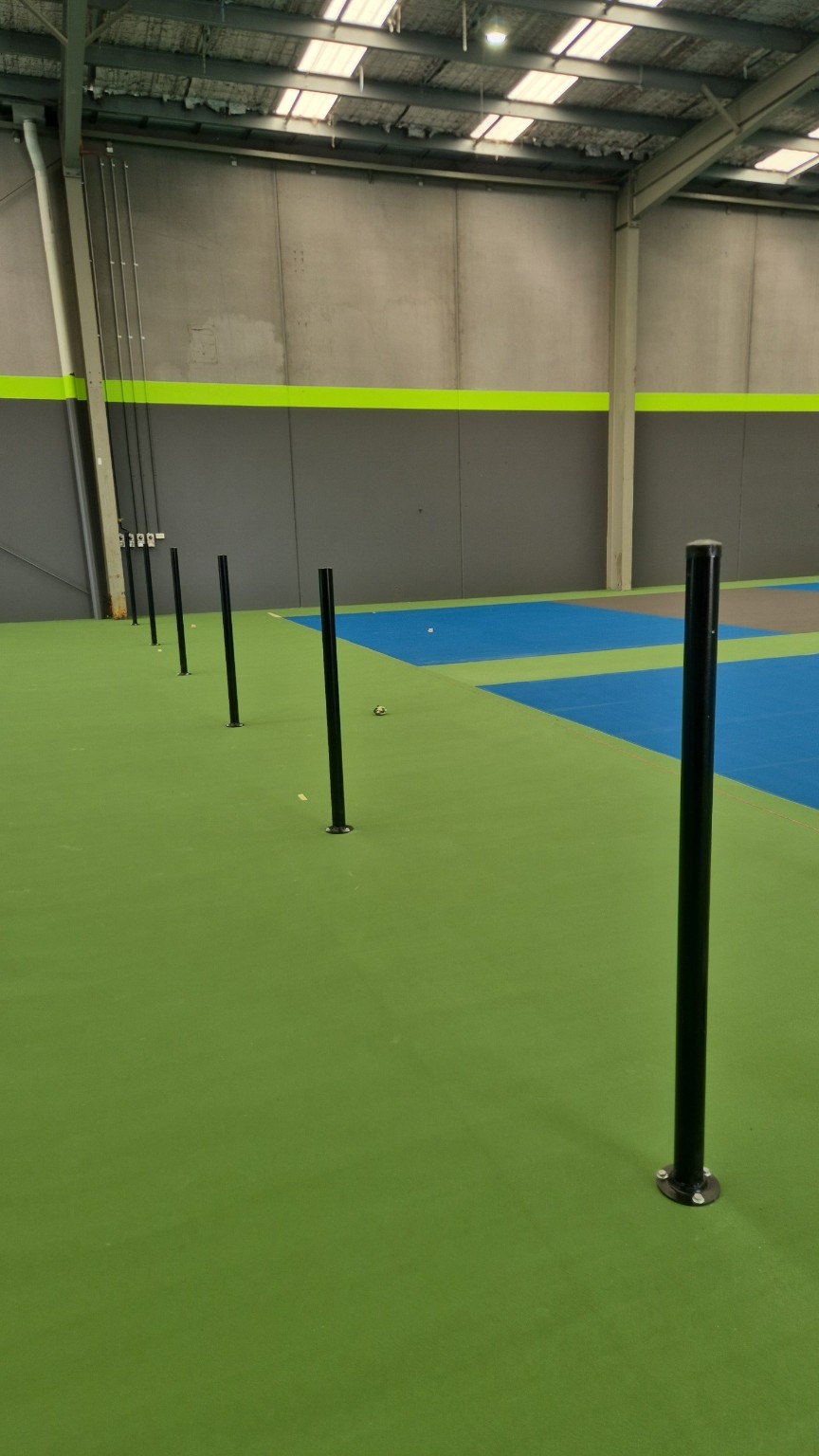

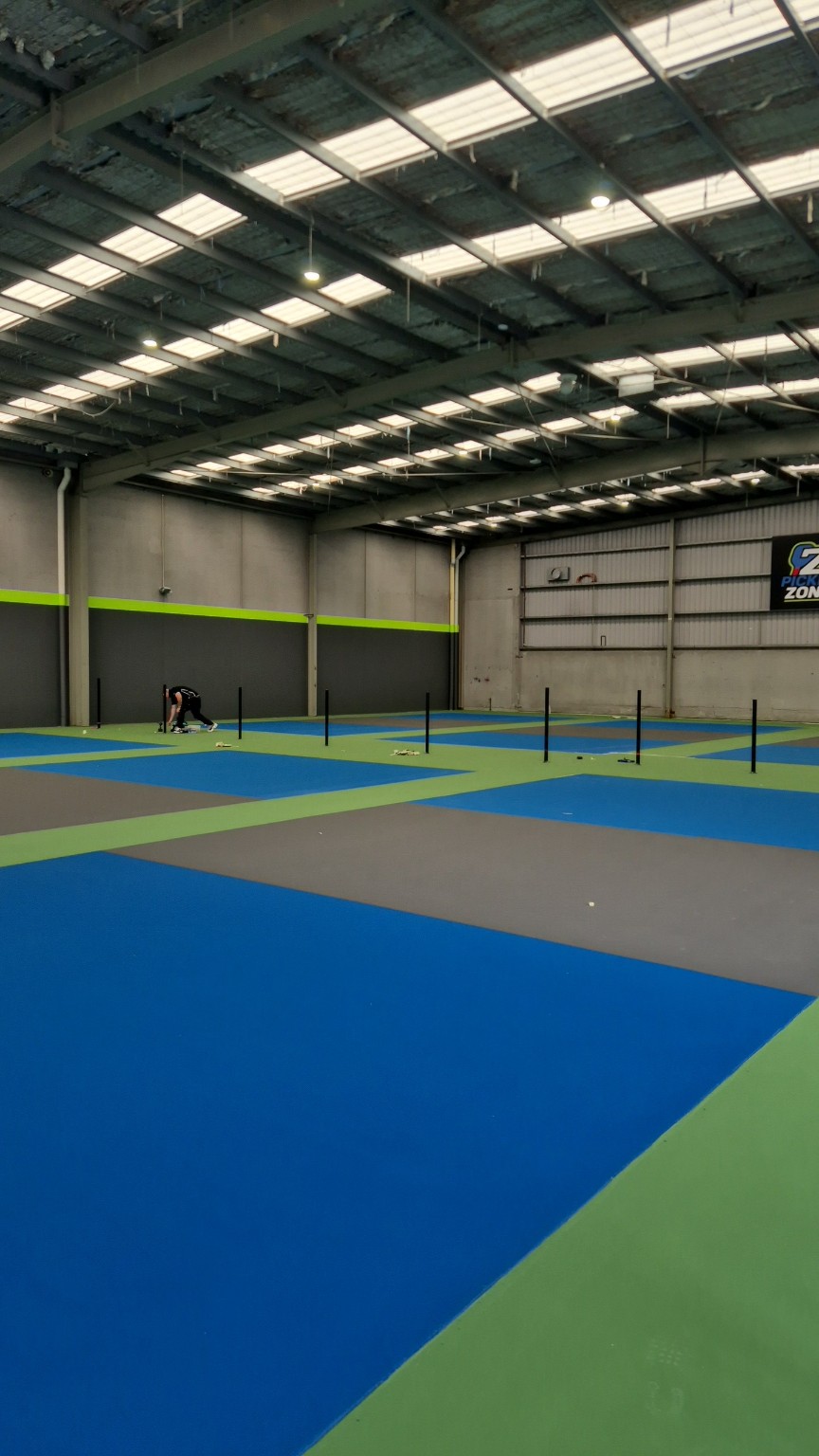

With the court surface already in place, the installation required particular care to minimise the risk of damage. Specialised drills with built-in vacuum systems helped minimise concrete dust while the base-plated posts were fixed in position.
Project Snapshot
- Client
- Pickle Zone
- Location
- Springvale VIC
- Project Date
- August 2026
- Job Type
- Indoor pickleball court fencing
- Scope
- Supply and install 61m of bolt-down 1200mm high black chain mesh fencing with top rail
- System
- 1200mm high 50 × 3.15mm black PVC-coated chain mesh with black powder-coated base-plated posts, top rail and 2 × 4mm black PVC-coated helicoil cables
- Installation
- Specialised drills with built-in vacuum systems used to minimise concrete dust while fixing the base-plated posts
- Turnaround
- Posts installed and mesh fitted on the same day, ahead of the venue’s opening
Ready for opening preparations
The Hyline team installed the posts and fitted the mesh in the same day, completing the fencing ahead of Pickle Zone’s opening in the following weeks. Careful work around the finished court surface was central to the installation.
